Encoder Values

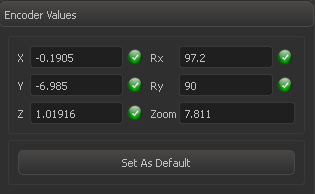

The 'Encoder Values' panel ('Hardware' tab, right panel) is designed to display current configuration of the motors and zoom value.

Encoder States

Icon	State
	The encoder of the motor was initialized correctly
	The encoder of the motor was not initialized. You should quit the DM application, restart microscope hardware and start the application again. All encoders in this case will be reinitialized.

Set System Configuration As Default

Also you can save the current system configuration (motors position, zoom, aperture, configuration of lighting, white balance, exposure time) and return it at the next start application. To do this, you should press the 'Set As Default' button (at the next start application this configuration will be returned). Press on this button again to reset old configuration and to save the current.
